Godox GM55 5.5"4K HDMI Touchscreen On-Camera Monitor GM55

Key Features

Full HD 1080p Touchscreen Display
DCI 4K24/UHD 4K30 HDMI Input & Output
Headphone Port / Camera Control Port
3D LUT Import via SD Card Slot
Waveform, Zebra, Audio Meters & More
L-Series Battery Plate
DC Input & Output Power Ports
Sun Hood & Shoe Mount Included
Six Function Buttons



GM55 Overview

The Godox GM55 is a compact, 15cm on-camera monitor with a lightweight plastic design, 1080p touchscreen display, and HDMI input and output supporting up to DCI 4K24 and UHD 4K30 camera signals. The output allows you to connect to a wireless transmitter so other operators can monitor the image on set. The GM55 also features a headphone port and a proprietary camera control port for controlling record start/stop and other basic functions of select cameras via optional Godox control cables. The monitor comes with an L-series battery plate on the rear and offers a DC power input port for optional power cables. Additionally, a DC output port is provided for running power to select cameras from the monitor. Batteries and power cables are sold separately.

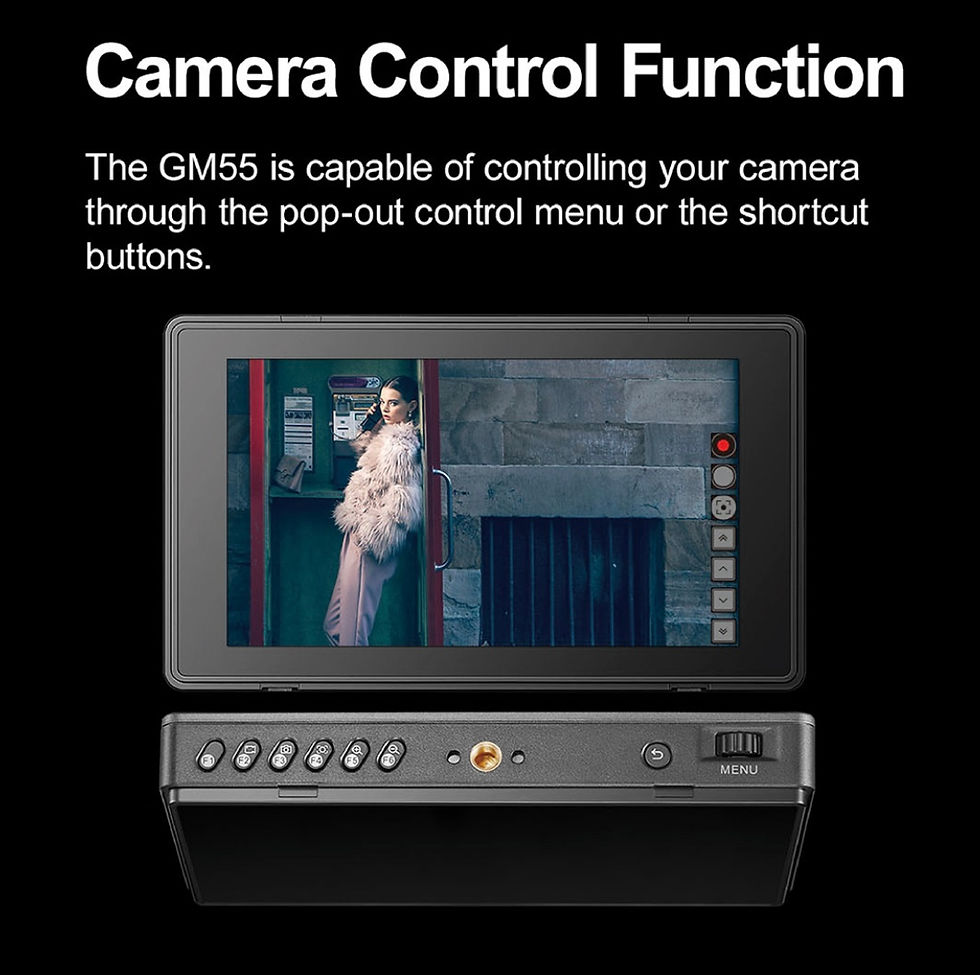

The GM55 allows you to import up to 25 3D LUTs via an SD card slot, which has a protective cover over it just as there is over the camera control port (the SD slot is for LUT import only). The extensive software features of the GM55, such as false colour and vectorscope, can be adjusted by touchscreen via a simple interface with headings on the left side and adjustment points on the right. These allow you to monitor focus, exposure, and other factors in more detail. The menu can also partly be controlled by a scroll wheel on top. Six function buttons are provided on the top as well, which can be loaded with the software monitoring features of your choice for quick recall. Three 1/4″-20 mounting ports are provided, on the top, bottom, and right side, allowing for horizontal and vertical mount. A shoe mount adapter is included for attaching the monitor to your camera’s hot shoe or to a cage with a shoe mount. A slim, collapsible sun hood is also included and snaps onto the monitor to block sunlight in outdoor environments.

Software Monitoring Features

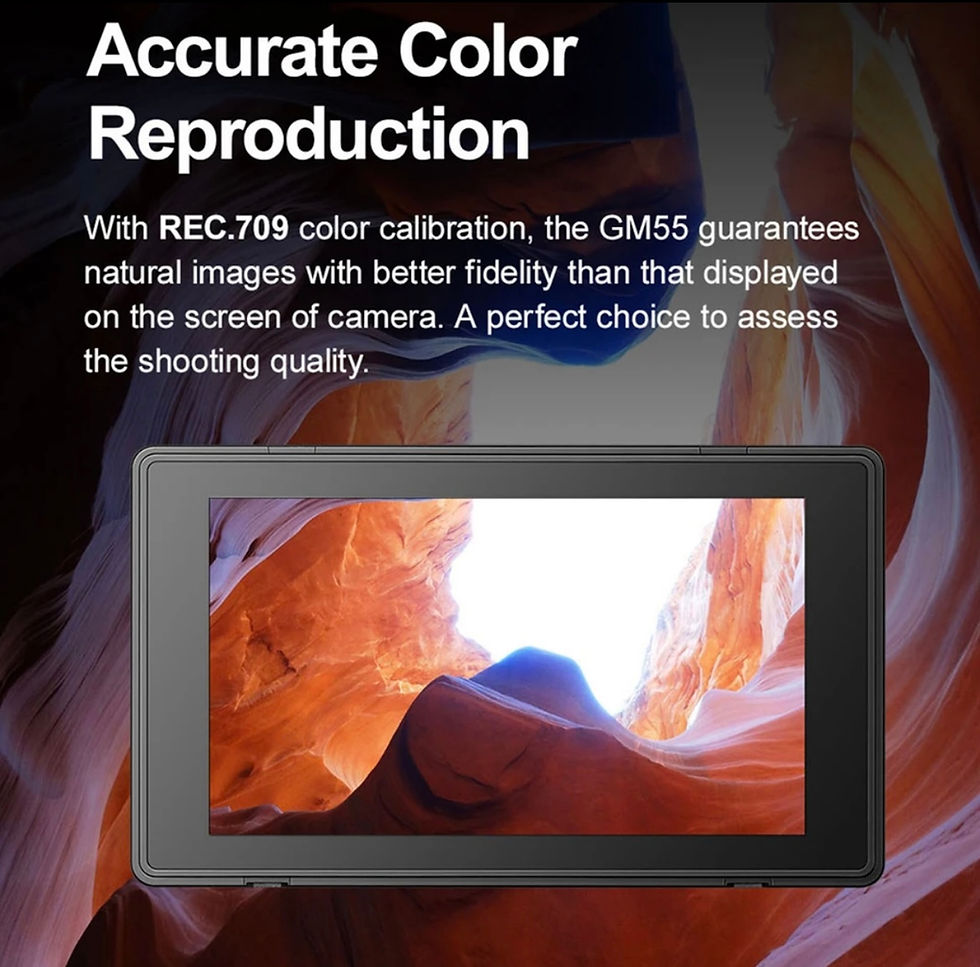

Rec. 709 colour space
False colour
Zebra
Waveform
Vectorscope
Histogram
Focus assist
Safety marker
Centre marker
Audio meters
Zoom
Grid lines
Aspect ratio (up to anamorphic 2.35:1)
Image flip


What’s In the Box:

Godox GM55 15cm 4K HDMI Touchscreen On-Camera Monitor
Sun Hood
Tilting Shoe Mount to 1/4″-20 Adapter
2 x HDMI Cable
Screen Cloth
Limited Godox SA 2-Year Warranty
Godox GM55 Specs
Display
Panel Type IPS-Type LCD
Display Size 14.0 cm
Aspect Ratio 16:9
Viewing Angle Horizontal: 160°
Vertical: 160°
Touchscreen Yes
Maximum Brightness 410 cd/m2
Contrast Ratio 1000:1
Bit Depth / Colour Support 8-Bit (16.7 Million Colours)
Pixels Per Inch (ppi) 400 ppi

I/O
Video 1 x HDMI Type A Input
1 x HDMI Type A Output
Audio 1 x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker None
Power 1 x Barrel Input
Other I/O 1 x Proprietary

Format Support
Video Format HDMI
DCI 4K: 24/23.98
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/50
720p: 60/50
576p: 60
576i: 50
480p: 60
480i: 60
Gamma Curve Rec709

Power
Battery Type 1 x L-Series
Power Consumption 7 W

Mounting
Mounting 3 x 1/4″-20 Female
Environmental
Operating Temperature 14 to 122°F / -10 to 50°C

General
Material of Construction Plastic
Dimensions 154 x 90 x 34 mm, Including Sun Hood
Weight 318 g, Including Sun Hood

**Battery Not Included
